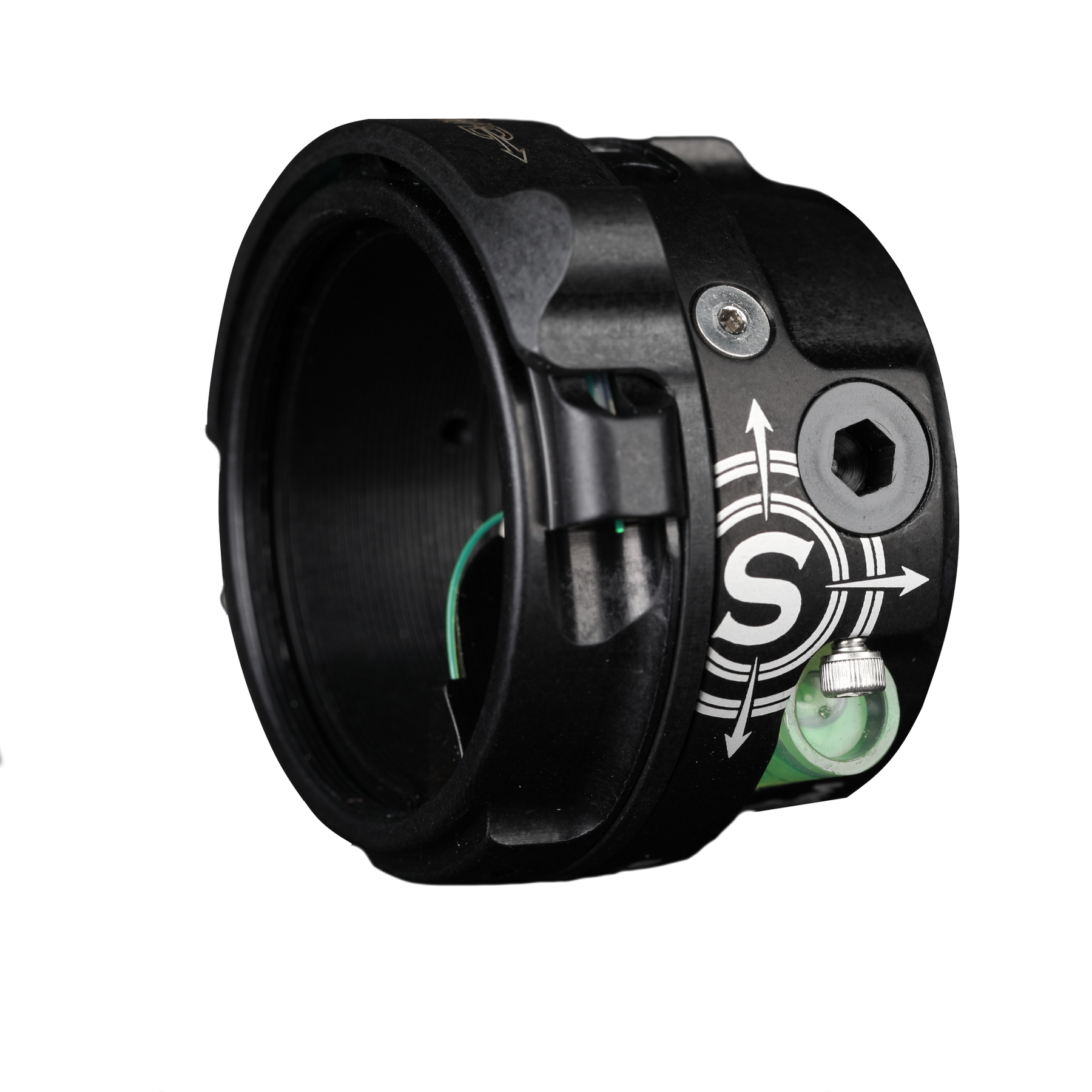

- THE OPTUM TAKES THE VERSATILITY AND FEATURES SHREWD SCOPES ARE KNOWN FOR TO THE NEXT LEVEL. WITH MORE ADJUSTABILITY THAN ANY OTHER SCOPE IN OUR LINE; THE OPTUM PACKS ALL THE FEATURES OF THE NOMAD PLATFORM INTO AN EFFICIENT AND EASY TO USE PACKAGE. THE HASSLE OF CHANGING PIN POSITIONS, INSTALLING A LIGHT KIT, AND SWAPPING FIBER IS GONE. THE OPTUM SERIES ARE THE EPITOME OF ADJUSTABLE EFFICIENCY.
- AVAILABLE IN A 35MM OR 40MM SIZE, RIGHT OR LEFT HANDED, AND WITH FIVE OPTUM RING SYSTEM (ORS) OPTIONS
- FEATURES:
- ADJUSTABLE FIBER COVER OFFERS PRECISE CONTROL OVER THE PIN BRIGHTNESS
- THREE 8-32 THREADED HOLES ALLOW EASY INSTALLATION OF A LIGHT KIT RIGHT OUT OF THE BOX IN SECONDS
- TWO OF THE LIGHT POSITIONS ILLUMINATE THE FIBER
- ONE LIGHT POSITION ILLUMINATES A DOT ON LENSES OR FIBER IN CENTERED DRILLED LENSES
- 8-32 THREADED LIGHT PORTS ARE COMPATIBLE WITH SCHLITE, LP, AND ZBROS LIGHT SYSTEMS
- EIGHT PIN POSITIONS THAT CAN BE CHANGED IN SECONDS WITH THE OPTUM RING SYSTEM
- PIN POSITION INDICATOR OFFERS A QUICK REFERENCE FOR REPEATABILITY
- ADDITIONAL OPTUM RING SYSTEMS ARE AVAILABLE HERE
- OPTIONAL SUNSHADES THAT CAN BE THREADED ON EITHER SIDE OF THE SCOPE
- KEYWAY SLOT FOR THE PIN ENSURES IT ALWAYS REMAINS IN PLACE AND ALIGNED CORRECTLY
- 7/16"-20 PLUG CLOSES THE LARGE HOLE TYPICALLY FOUND ON THE SIDE OF SCOPES FOR COMPLETE LIGHT CONTROL
- MOUNTING POCKET ACCEPTS SQUARE AND HEX SCOPE RODS TO PREVENT THE SCOPE FROM ROTATING
- SPECIFIC SCOPE RODS FOR AXCEL®, SPOT HOGG, AND SURE-LOC® ARE AVAILABLE
- BE SURE TO REMOVE THE HEX NUT ON THE 10-32 THREADED ROD BEFORE INSTALLING SCOPE RODS
- INCLUDES:
- SCOPE BODY
- OPTUM RING SYSTEM
- TUBING AND FIBER COVER ALREADY INSTALLED
- GREEN, RED, AND BLUE LEVELS
- GREEN, ORANGE, AND BLUE FIBER (IF PIN OPTION IS SELECTED)
- 10-32 X 2" AND 10-32 X 1.25" BUTTON HEAD SCREWS
- 1/16" ALLEN WRENCH
- 7/16"-20 DELRIN PLUG
-
COMPATIBILITY:
- B3 - REQUIRES THE USE OF THE 10-32 X 1/2" BUTTON HEAD SCREW THAT COMES STOCK WITH THE B3 SIGHT WHEN MOUNTING THE SCOPE.
- AXCEL - CAN MOUNT TO THE STOCK AXCEL SCOPE ROD BUT WILL REQUIRE A 10-32 X 2.5" BUTTON HEAD BOLT OR THE STOCK SCOPE ROD CAN BE REPLACED WITH A 1/2" SHREWD SCOPE ROD.
- SPOT HOGG - REQUIRES A 3/8" SHREWD SCOPE ROD.
- SURE-LOC - CAN MOUNT TO THE STOCK SCOPE ROD BUT MAY REQUIRE A 10-32 X 2.5" BUTTON HEAD BOLT OR THE STOCK SCOPE ROD CAN BE REPLACED WITH A 3/8" OR .455" SCOPE ROD DEPENDING ON THE SIGHT MODEL (SEE SCOPE ROD PRODUCT DESCRIPTION).
